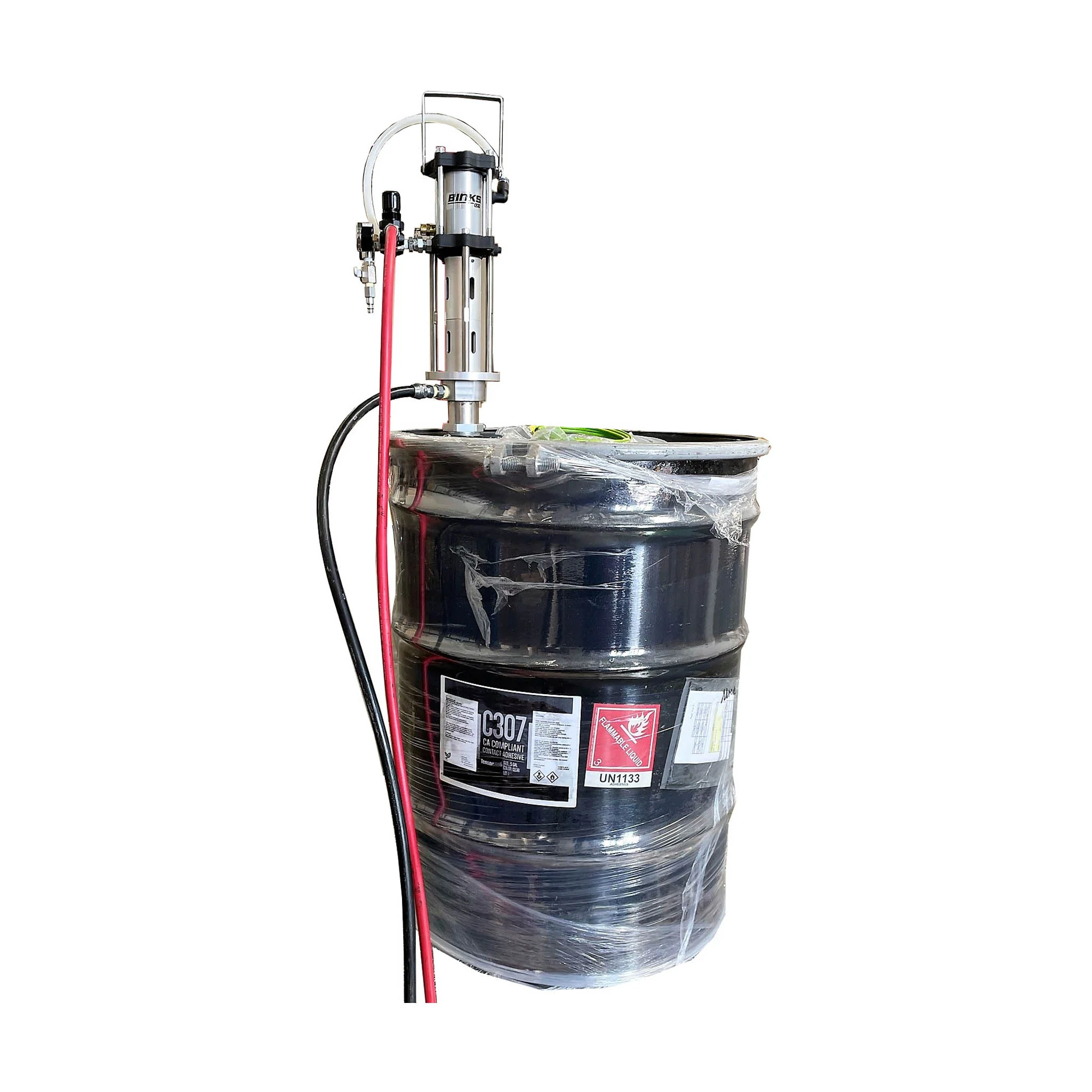

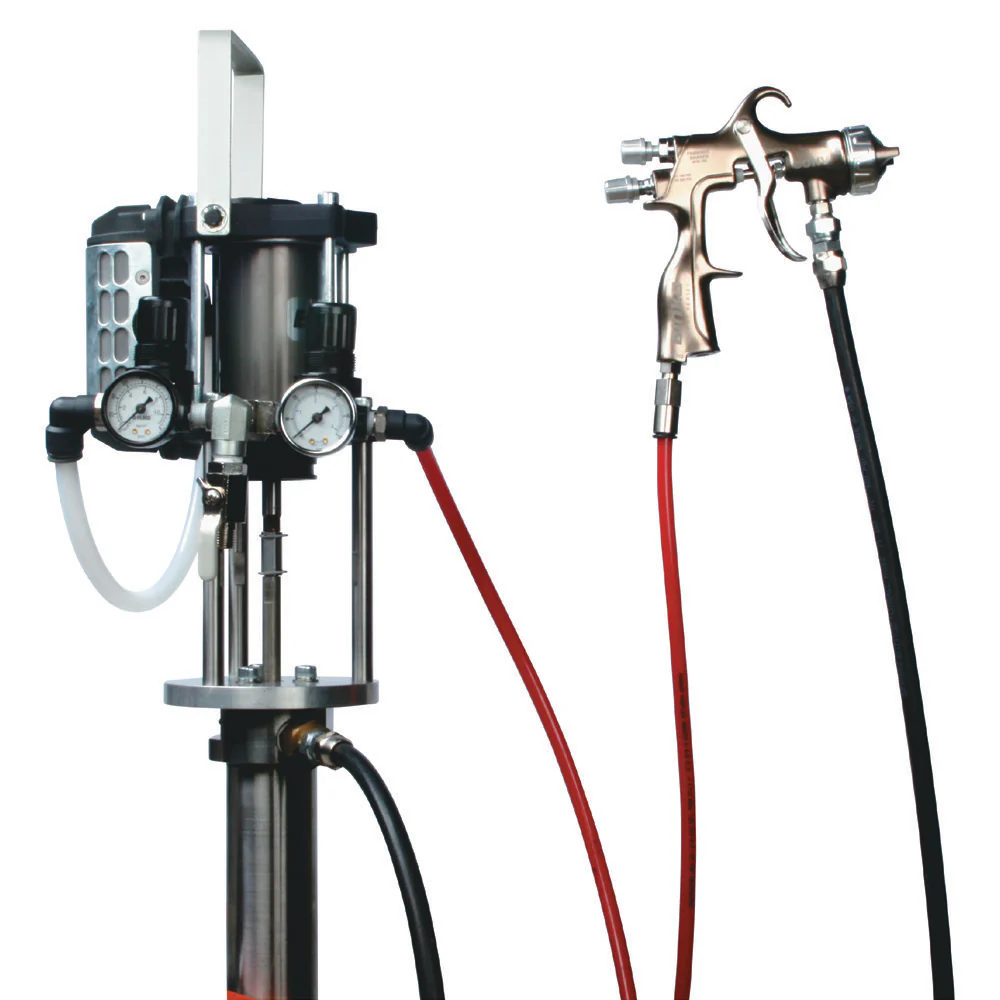

Binks Pogo Plus PX1304-5 Spray System Kit – W101 Gun with 25 ft Hoses

The Binks Pogo Plus PX1304-5 Spray System Kit is a complete solution for high-volume fluid transfer and precision spray application. This industrial-grade system includes the PX1304-5U 4:1 stainless steel double-acting piston pump with a patented air motor, W101 HVLP-compliant spray gun, 25 ft fluid hose, 25 ft air hose, drum bung adapter, and air control assembly. Ideal for spraying adhesives, solvent-based coatings, enamels, and other low-to-medium viscosity materials, this kit delivers reliable performance in woodworking, metal finishing, and general industrial environments.

Key Highlights of the Binks PX1304-5 Spray System Kit

Complete System: Includes pump, spray gun, air & fluid hoses, air control, and drum adapter—everything you need to get started.
Reliable Pump Performance: PX1304-5U double-acting piston pump delivers consistent flow at a 4:1 pressure ratio with up to 290 psi output.
HVLP Compliant Spray Gun: W101/200 pressure-fed spray gun delivers high transfer efficiency and superior atomization. Includes 1.5 mm nozzle and cleaning brush.
Patented Air Motor Design: Reduces pulsation and ensures smooth, reliable performance in high-volume applications.
Industrial-Grade Components: Built with durable stainless steel and PTFE/UHMWPE-compatible parts for long service life.
Ideal for Adhesives & Coatings: Suitable for low- to medium-viscosity adhesives, paints, coatings, and cleaning solutions.

Specifications

Product Type: Spray System Kit
Pump Model: PX1304-5
Pressure Ratio: 4:1
Air Inlet Pressure 0-72.5 psi (5 bar)
Cycles per Gallon: 47
Flow Rate: 1.3 GPM @ 60 Cycles/Min
Spray Gun: W101 Conventional Gun
Hoses Included: 25 ft Air Hose (71-4803), 25 ft Fluid Hose (71-3303)
Accessories: Drum Bung Adapter (41-28331), Air Control Assembly (41-28272)
Applications: Adhesives, Coatings, Paints, and Solvents
Recommended Materials: Low- to Medium-Viscosity Fluids
