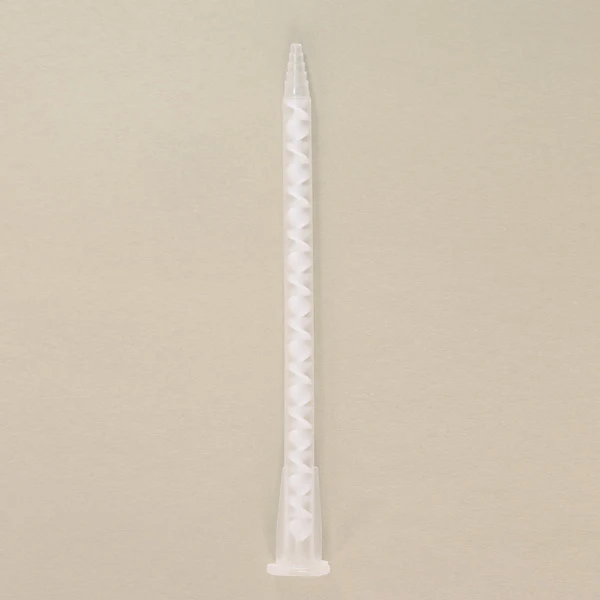

Infinity Bond MAH 06-21T Static Mixing Nozzle for 50 ml Cartridges

The Infinity Bond MAH 06-21T is a high-performance static mixing nozzle designed for 50 ml cartridges in 1:1 and 2:1 ratios. It features a helix-style design with 20 mixing elements and a stepped tip outlet, providing consistent, bubble-free blending of two-part adhesives like epoxies, acrylics, and urethanes. With a secure bayonet connection and 5.85 in (149 mm) length, this nozzle delivers clean, efficient performance in demanding applications. This model is commonly used as a cost-effective alternative to the Sulzer MAH 06-21T, offering similar performance and bayonet compatibility.

MAH 06-21T Disposable Mixing Tip Benefits

Reliable Helix Mixing: 20 internal elements ensure thorough blending of two-part chemistries for consistent results.
Bayonet (Twist and Lock) Connection: Enables fast, secure attachment to standard 50 ml cartridges in 1:1 and 2:1 ratios.
Stepped Outlet Tip: Offers precise, mess-free dispensing and easy trimming for fine control.
Compact and Efficient: 5.85 in (149 mm) length minimizes adhesive waste while maintaining excellent mixing performance.
Versatile Compatibility: Ideal for dispensing epoxies, acrylics, urethanes, and other reactive adhesives.

Infinity Bond MAH 06-21T Specifications

Part Number: MAH 06-21T (Previous: IB 0620)
Mixer Type: Helix
Connection Type: Bayonet (Twist and Lock)
Outlet Tip: Stepped
Compatible Cartridge Sizes: 50 ml Cartridges
Mix Ratios: 1:1 and 2:1
Number of Elements: 20
Inner Diameter: 0.250 in / 6.35 mm
Outer Diameter: 0.343 in / 8.7 mm
Length: 5.85 in / 149 mm
Housing Outlet Diameter: 0.059 in / 1.5 mm
Approx. Retained Volume: 3 ml
Housing Material: Polypropylene
Element Material: (Not specified)
Used With: Two-Part Epoxies, Polyurethanes, Silicones, and Methyl Methacrylates (MMA) and More

Comparable Infinity Bond MAH 06-21T Mixer Nozzle

Sulzer MAH 06-21T
