Jensen Global IT Series Standard Needles - 1000 Needle Packages

About the Jensen Global IT Series Standard Adhesive Needle 1000 Pack

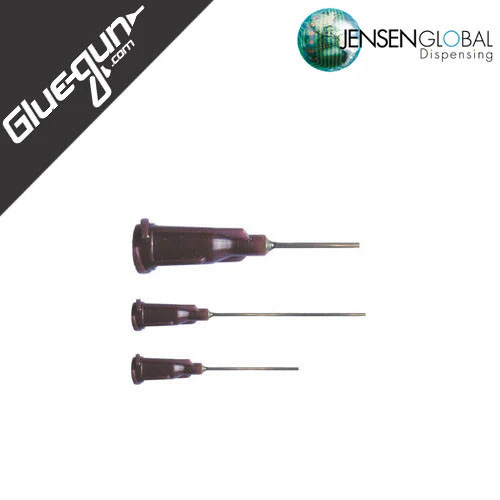

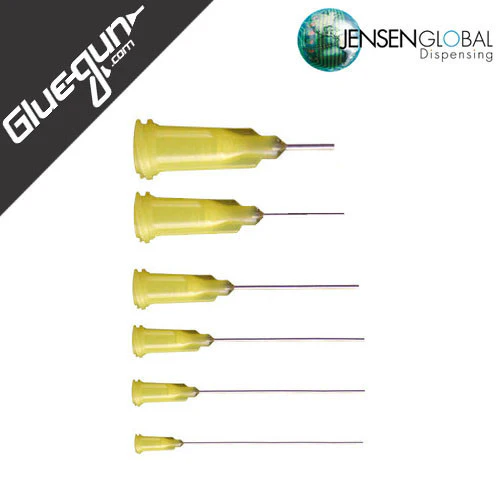

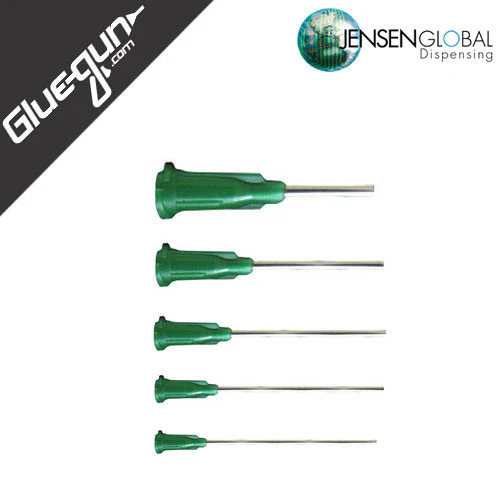

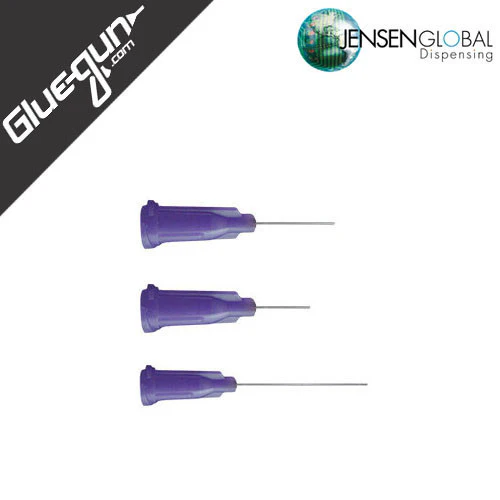

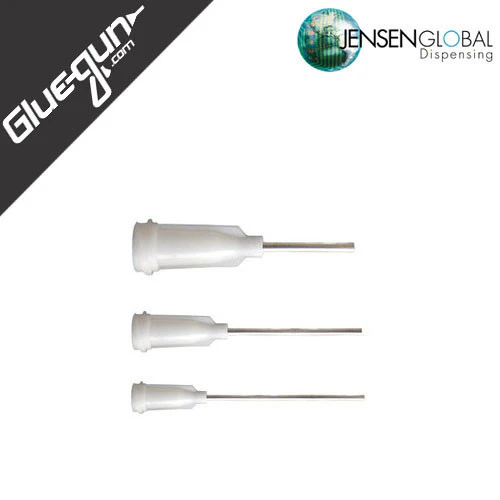

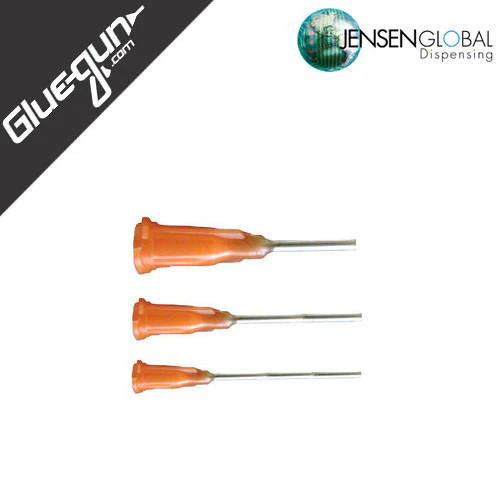

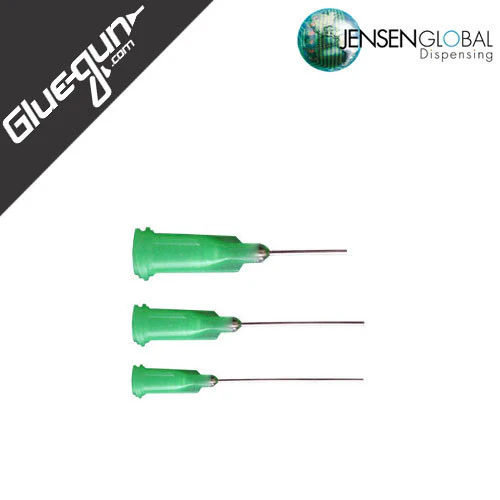

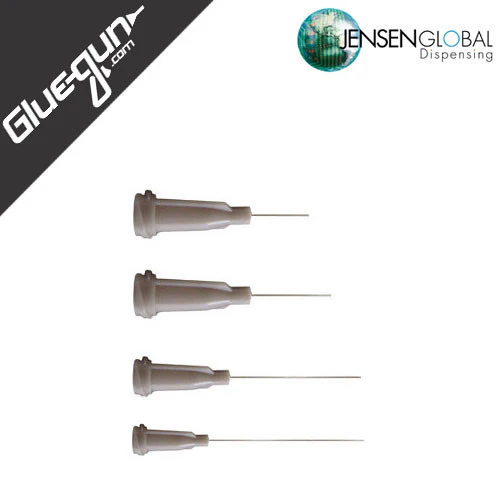

The Jensen IT Standard needle is a quality, low cost needle with a luer lock hub and stainless steel tubing. This needle is disposable and comes in a huge selection of gauge sizes and lengths.

The IT Needles from Jensen are manufactured with a silicone free process and use the international color code for choosing needle gauges. The 304 stainless portion of the IT needle is adhered with a strong UV adhesive after it is inserted into the helix style plastic hub.

Contact us with questions regarding the IT Needles or for volume pricing.

Additional Information

• How to Buy Adhesive Dispensing Needles

Jensen Global IT Series Adhesive Needle Specifications

Needles Specifications – IT Series Standard
Color	Gauge	Inside Diameter	Outside Diameter
		in	mm	in	mm
Olive	14	0.069	1.753	0.083	2.108
Orange	15	0.059	1.499	0.072	1.829

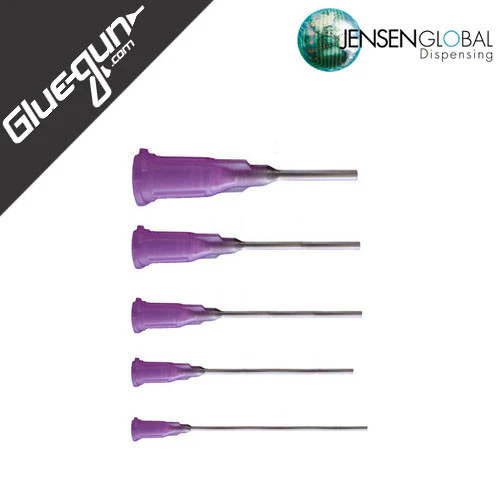

Purple	16	0.053	1.346	0.065	1.651
White	17	0.048	1.219	0.058	1.473
Pink	18	0.038	0.965	0.049	1.245
Brown	19	0.033	0.835	0.043	1.092
Yellow	20	0.025	0.635	0.036	0.914
Green	21	0.022	0.559	0.033	0.838

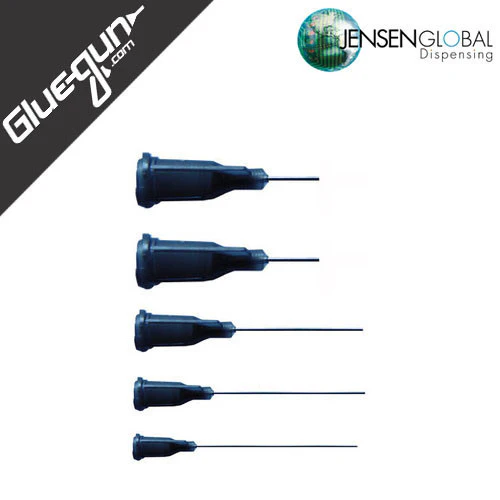

Black	22	0.020	0.508	0.028	0.711

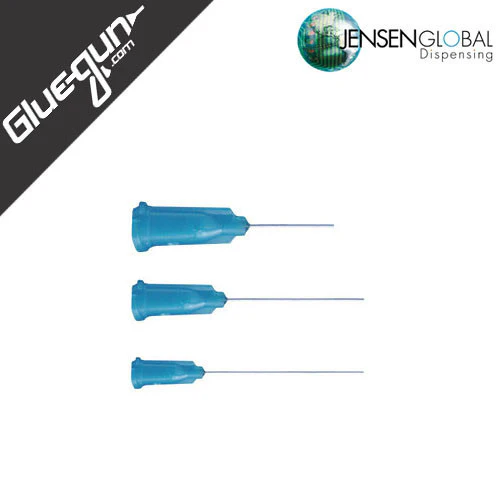

Sky Blue	23	0.016	0.406	0.025	0.635

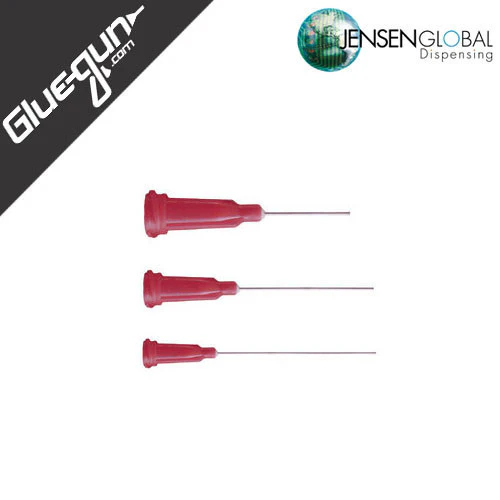

Red	24	0.015	0.381	0.022	0.559
Blue	25	0.012	0.305	0.020	0.508
Cream	26	0.011	0.279	0.019	0.483
Gray	27	0.009	0.229	0.016	0.406
Lavender	30	0.006	0.152	0.012	0.305
